DIN Globe Valve

Model:
-
Size:
DN15-DN600
Pressure:
PN10-PN420, Class 150- Class 2500
Body Materials:
Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze/Brass
Applicable Medium:
Water, oil, steam and other non-corrosive media.
Introduction Features Technical Parameters Technical Standard Related Products Inquiry

Product Introduction

DIN Standard Sealed globe valve is applied to various kinds of working conditions of pipelines such as petroleum, chemical industry, pharmacy, fertilizer, and power industry, etc, under nominal pressure in the PN1.6-40 MPa and operating temperature at -20 - 350ºC, that is used to cut off or connected to the pipeline medium.

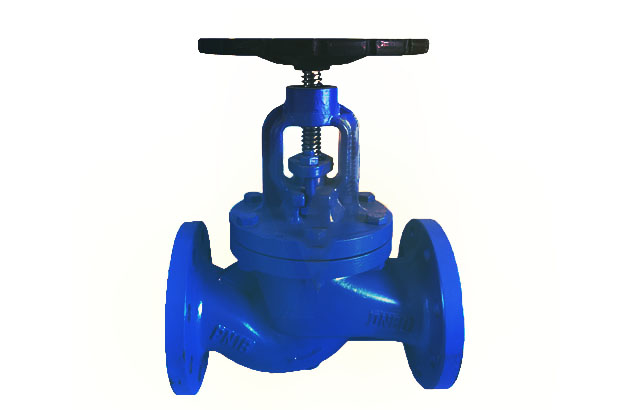

DIN Globe Valve
DIN Globe Valve

Product Features

1.Stem nut uses aluminum bronze material. Large valve is provided with thrust bearing to make it opened easily & flexibly.
2.Bolted bonnet, lift stem design.
3.Two piece design of packing gland to avoid stem clogging caused by squishing.
4.Flexible graphite packing for dependable sealing performance.
5.Upper seal design to ensure dependable packing and sealing when valve is fully opened(Replacement of packing under pressure is not recommended).
6.Operation: Hand wheel, Worm wheel, Pneumatic actuator and Electric actuator.

Technical Parameters

DIN Globe Valve
Size Main Dimension(mm)
PN DN L D D1 D2 C f n×φd
16 15 130 95 65 45 16 2 4×14
16 20 150 105 75 58 18 2 4×14
16 25 160 115 85 68 18 2 4×14
16 32 180 140 100 78 18 2 4×18
16 40 200 150 110 88 18 2 4×18
16 50 230 165 125 102 18 2 4×18
16 65 290 185 145 122 18 2 8×18
16 80 310 200 160 138 20 2 8×18
16 100 350 220 180 158 20 2 8×18
16 125 400 250 210 188 22 2 8×18
16 150 480 285 240 212 22 2 8×22
16 200 600 340 295 268 24 2 12×22
16 250 730 405 355 320 26 2 12×26
16 300 850 460 410 378 28 2 12×26
16 350 980 520 470 428 30 2 16×26
16 400 1100 580 525 490 32 2 16×30

Technical Standard

1.Design and manufacture according to DIN EN13709:2003.
2.Face to face according to DIN EN588-1:1995.
3.End Flange according to DIN EN1092-1:2002.
4.Pressure test according to DIN EN12266:2003.

Please contact us if have any intrests and question.
